NL2024ED22
VOLTAGE
14.4 V
CAPACITY
6.6 Ah
CURRENT
10.0 A
POWER
100 W

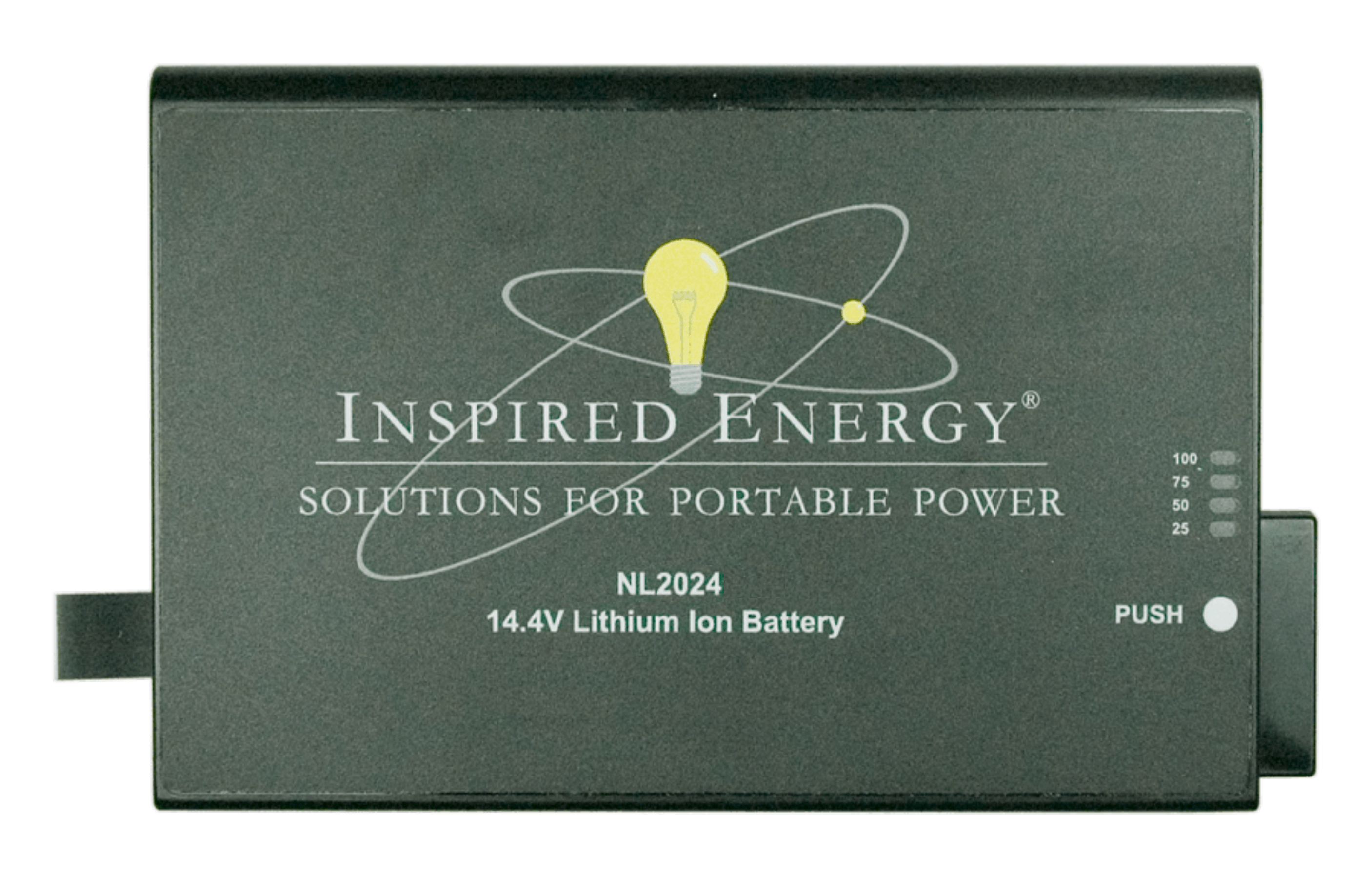

NL2024ED22

At 98Wh the latest 8-cell NH2054 or NH2034 models have greater stored energy compared to this 12-cell model in a package which is 25% smaller and lighter. We recommend using these models for new designs. An alternative for existing designs is the RH2024 model. This model uses the same plastic case but only fills it with 8 cells creating a 30% lighter option. The NL2024 and RH2024 are capable for low temperature applications as it can perform as low as -10°C. (Note, in cases of low temperature applications, we strongly recommend testing in your specific application). Also, with its 8A/10A discharge capability, the NL2024 and RH2024 are ideally suited as a small “hot-swap” battery to hold up the device for a short period while the main battery is charged.

These smart Li-ion batteries can be customized to meet unique specifications. Custom label, custom firmware and some performance options are available. Creating custom-hybrids of standard batteries is a part of Inspired Energy’s established expertise.



Qty 1-11, $209.30 USD ea.

To place an order or for additional quantity pricing, please contact us.

Length X Width X Height (Inches):
6.6" X 4.3" X 0.9"
Length X Width X Height (mm):
167.7mm X 109.22mm X 22.86mm
Energy:
95
Chemistry / Cell Array:
12 Li-ion 18650 cells / 4S3P array
Equivalent Lithium Content:
≤8g
Mating Connector:
AMP P/N 5787422-1 or 5787446-1
Cavity Size:
22.5mm x 109mm cross section
Fuel Guage Display:
Push button 4-bar LED
IP Rating:
None
Optional Belt Pack:
Belt Pack Number:
BPXX or BC2BVX
On Board Charger:
Has power supply:
Vehicle Cable:
USB Charge Port:
Bluetooth:
